Sewer Line Repair in Englewood, CO

A failing sewer line is one of the most stressful and costly issues an Englewood property owner can face. Unlike a simple drain clog that affects a single sink, a broken sewer line prevents your entire home from discharging wastewater safely. Over time, cracked pipes allow sewage to seep into foundation soils and surrounding yard areas.

Early detection is critical. If multiple fixtures backup at once, if you smell sewage in your basement after running laundry, or if you notice an unseasonably damp, green strip across your lawn between the foundation and the street, your lateral pipe has likely cracked or collapsed. Waiting until a total collapse forces an emergency replacement in winter adds significant cost and inconvenience.

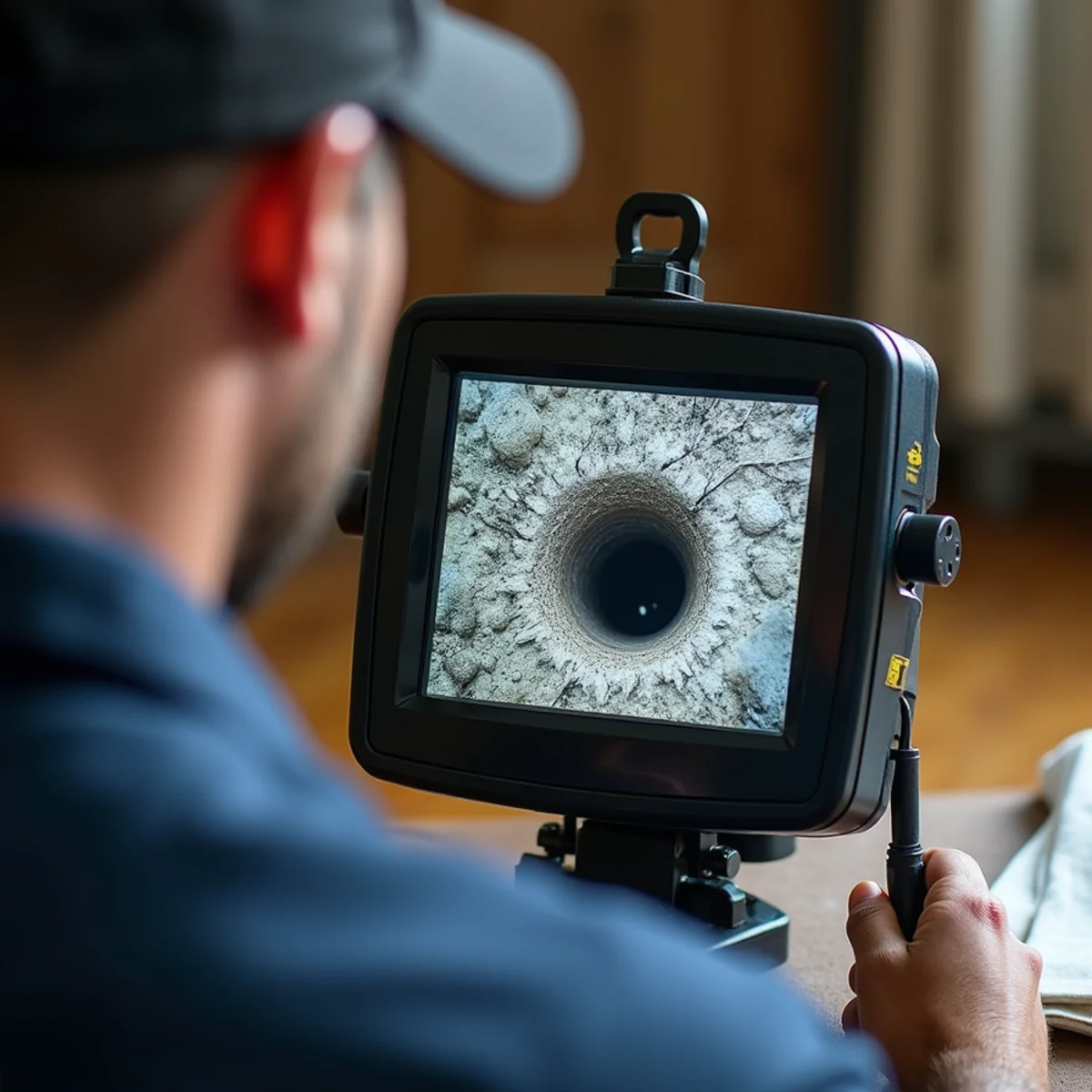

You cannot fix what you cannot see. Before recommending any sewer repair or replacement, Madrid Plumbers conducts a comprehensive high-definition sewer scope inspection. We insert a rugged, flexible fiber-optic camera equipped with high-intensity LED lighting and digital distance counters into your cleanout.

The live video feed reveals the exact condition of your pipe interior: vitrified clay joint separation, sheared pipe collars, heavy root mats, scale accumulation in cast iron, low spots holding water (bellies), and cracked crowns. Because our cameras feature built-in radio sondes, we can locate the exact depth and above-ground GPS coordinates of any defect, avoiding unnecessary digging.

Most residential neighborhoods in Englewood—from the tree-lined avenues of 80110 to the post-war ranches near Swedish Medical Center—were connected to municipal sewers between 1940 and 1960. The materials used at that time were vitrified clay tile for the yard lateral and heavy cast iron beneath the foundation.

While clay tile is impervious to chemical degradation, it is structurally rigid and brittle. Over fifty to eighty years of ground vibration, heavy traffic on residential streets, and seasonal soil expansion, these short 3-foot clay pipe sections shift out of alignment. Once a joint opens even a quarter of an inch, tree roots infiltrate and soil erodes into the pipe, creating internal caverns and inevitable collapses.

The Front Range is famous among structural and civil engineers for its highly expansive bentonite clay soils. As moisture levels fluctuate between wet Colorado winters and dry summers, the soil swells and contracts with incredible hydraulic force. This shifting ground creates two major sewer lateral problems: offset joints and pipe bellies.

An offset joint occurs when one pipe segment drops lower than the adjoining segment, creating a sharp lip that catches toilet paper and solid waste. A pipe belly is a low dip where the line loses its proper quarter-inch-per-foot fall. Water pools in the belly, slowing flow and causing waste to settle into a dense sludge blanket that snags passing debris.

At Madrid Plumbers, we do not believe in a one-size-fits-all approach. Depending on the camera scope findings, our network pros offer multiple tailored restoration pathways:

1. **Trenchless Pipe Bursting**: The gold standard for total replacement. A hardened conical bursting head is pulled through your existing brittle clay or cast iron pipe, fracturing it outward while simultaneously pulling a seamless, heavy-duty HDPE (High-Density Polyethylene) pipe behind it. It requires only two small access holes, preserving your mature trees, concrete driveway, and front lawn.

2. **CIPP Epoxy Pipe Lining**: If the existing host pipe has minor cracks and root penetration but maintains its circular shape and slope, an epoxy-saturated felt tube can be inverted into the line and cured in place. This creates a brand-new, smooth, jointless pipe-within-a-pipe with a 50-year design lifespan.

3. **Targeted Spot Excavation**: If 90% of your sewer lateral is in sound condition and only an isolated 6-foot section under the lawn has collapsed from root intrusion, we can perform a surgical spot excavation to replace just the damaged section with modern SDR-35 PVC and mission couplings.

In the City of Englewood, sewer work involving the public right-of-way (from the property line or sidewalk to the municipal sewer main in the street) is strictly regulated. Excavations require Right-of-Way (ROW) permits from Englewood Utilities, certified traffic control plans, and strict adherence to backfill compaction and asphalt restoration standards.

Our network contractors handle all permitting, municipal utility locating (Colorado 811), and coordination with Englewood city inspectors. We ensure every aspect of your sewer replacement is fully permitted, inspected, and code-compliant.

A frequent question from homeowners is: 'Where does my responsibility end and the city's begin?' In the City of Englewood and surrounding Arapahoe County jurisdictions, **the property owner owns and is responsible for the entire sewer lateral from the home all the way to its connection tap at the municipal sewer main**, including the section beneath the sidewalk and public roadway.

The City of Englewood operates and maintains only the central sewer mains. If your lateral fails in the street before reaching the main, the repair costs fall on the homeowner. That is why trenchless pipe bursting is so valuable—it allows us to replace the line all the way to the city tap without paying thousands for full street excavation.

Sewer project costs vary depending on footage, depth, repair method (trenchless vs. traditional excavation), surface restoration (grass vs. concrete driveway or street asphalt), and municipal permit requirements. We provide comprehensive, itemized quotes after the camera inspection so you can evaluate all options with total confidence.
